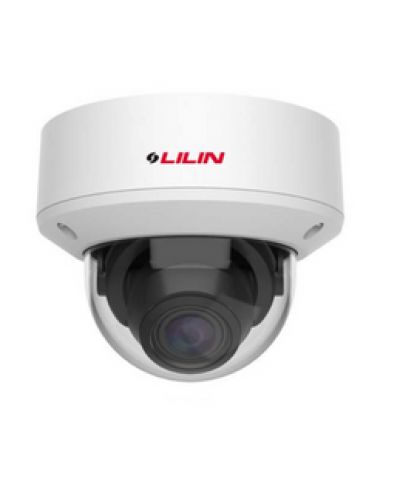

CAMERA LILIN E SERIES E5R4252AX

Mô tả:
- Hình ảnh chất lượng cao với CMOS quét liên tục
- Hỗ trợ mã hóa SMART H.265 / H.264
- Khoảng cách IR lên đến 30M
- 3D DNR, BLC
- Tích hợp khe cắm thẻ nhớ micro SD, lên đến 256GB
- Đầu vào âm thanh 1CH; Đầu ra âm thanh 1CH
- Nguồn điện DC12V / PoE
- Chuẩn IP66
- Hỗ trợ nhiều luồng
- Hỗ trợ giám sát bằng điện thoại thông minh
Lượt xem : 282

Download

Liên Hệ

Thông tin sản phẩm

Model	E5R4252AX
Min. illumination/Low Light Mode (Colour)	Color 0.002Lux @(F1.2,AGC ON) ; B/W 0 lux @ IR ON
Focal Length	2.7~13.5mm
Iris	F1.8 (W) – F3.3 (T)
Iris Control	Fixed
Angle of View	Horizontal: 31~102°, Vertical: 23~73°, Diagonal: 38~138°
Peak wavelength	850nm
Max IR distance	30M
Pick Up Element	1/2.7" CMOS image sensor
Effective pixels	2608(H) X 1960(V) = 5,111,680 (Pixels)
CE	Yes
FCC	Yes
IP Rating	IP66
Vandal Resistant Rating / IK Rating	IK10
CPU	Intel Core i7 or higher grade
OS	Windows 7 or above
RAM	8GB or more, Dedicated Graphics Card
Web browser	Microsoft® Internet Explorer® 10 and later
Alarm Input / output	Mono, 1.98 Vp-p, 2.2KΩ, RCA connector
Audio	Two-way Audio, G.711 u-law / PCM
Video Compression	H.265/HEVC Main Profile, H.264 Main and High Profile , Motion JPEG
Video streaming	RTSP/UDP, RSTP/TCP, configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth
Number of streams	3
Video bitrate	128Kbps - 8192Kbps, Frame rate and bit rate controllable on-the-fly, VBR / CBR / GOP supported, H.264/H.265
Maximum Frame Rate	2592x1920 / 20 fps
Encryption	Base64 HTTP encryption, DDNS via HTTPS
Authentication	Digest HTTP authentication, RTSP Authentication, TLS, DDNS via HTTPS
Access	Multiple user access levels with password protection
User accounts	7 user accounts available
Resolution	Mainstream : 2592x1920, 2304x1728, 2304x1280, 1920x1080, 1280x960, 1280x720 Substream : 1280x720, 720x576, 720x480, 720x384, 640x480 Mobilestream : 720x480,720x384, 640x480, 352x256
Scanning System	Progressive Scan
Infrared Cut Filter	Auto / Schedule / Day (Color) / Night (Mono)
White Balance	Auto / Manual (Adjustable)
Electrical Shutter	1/30(1/25)s – 1/20000s
Sense Up+	Off / x2 / x4
Auto Gain Control	6 / 12 / 18 / 24 / 30 / 36 dB
S / N Ratio	More than 48dB (AGC off)
3D Noise Reduction	Yes
Privacy Masking	Off / On (4 zones)
Image Effects	Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip
EV (Exposure Value)	Adjustable
Mobile Application	Integrated to LILIN mobile app (LILIN Viewer), iPhone, iPad, Android support
Video Management	ONVIF Profile S / LILIN Navigator Enterprise 2.0 support, Third party VMS through LILIN HTTP API
SD Card (recording)	Support Micro SD/SDHC/SDXC card for circular recording (card is not included)
Maintenance	Firmware update via HTTP and IP Scan Firmware available at web site
Alarm event triggers	Motion / Network lost detection / Global Counter / Virtual Input / Metadata
Alarm event actions	FTP / SMTP / HTTP post / SD card / SAMBA / Global Counter / Virtual Input / Push Service notification
Languages	English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese
Network Interface/Ethernet	10Base-T / 100Base-TX, RJ-45
OSD	Text overlay for date, time, and camera name (position configurable text overlay for date, time, camera name)
CPU.Memory	Embedded SoC ARM Cortex-A7, 800MHz, 128MB DDR3, 64MB flash memory
Network OS	Embedded Linux 3.10
Protocols	IPv4, TCP, UDP, HTTP, HTTPS, SMTP, NTP, DDNS, FTP, ARP, DHCP, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S
Max number of online users	7 simultaneous users
Video Display	ActiveX
Log	System / Config / User / Record / Storang / Network
Starting Temperature	-10°C – +50°C (14°F – 122°F)
Operating temperature	-30°C – +50°C (-22°F – 122°F)
Storage temperature	-25°C – +60°C (-13°F – 140°F) Humidity 0% ~ 95% RH Power Supply DC12V ±10% / PoE (IEEE 802.3af compliant) Power Consumption DV12V, 4W / PoE, 6W Mechanical Dimension Ø148 x 109(H) mm Weight 950g Casing Material Aluminum alloy Window -- CATALOG LILIN E5R4252AX
Operating humidity	0% ~ 95% RH
Power Supply	DC12V ±10% / PoE (IEEE 802.3af compliant)
Power Consumption	DV12V, 4W / PoE, 6W
Dimensions	Ø148 x 109(H) mm
Weight	950g
Casing Material	Aluminum alloy
