Chi tiết
-
Mô tả:
- Đầu vào camera mạng 32 kênh H.264 / H.265
- Hỗ trợ camera mạng lên đến 4K H.264 /H.265
- Hỗ trợ camera mạng lên đến 1080P 120 FPS
- Hỗ trợ ổ cứng lên tới 16TB
- Đầu ra HDMI 2.0 4K 60P / VGA 1080P 60fps
- Kết nối UID mã QR P2P cho APP và Bộ điều hướng
- Hỗ trợ lưu trữ e-SATA bên ngoài
- Điện thoại di động cung cấp giải pháp iOS, Android
- Thông lượng đầu vào mạng lên tới 300Mbps RAID 160Mbps
- Hỗ trợ phần mềm RAID 1/5/6
- Giá treo 19" 2U
- Hỗ trợ Chrome, Edge, Firefox, IE, Opera, Safari
- Thông tin liên lạc GPS
- Lượt xem : 400

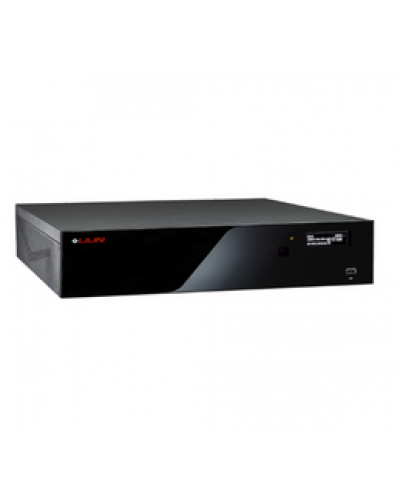

ĐẦU GHI HÌNH 32 CH 4K 2U NVR7832 (Coming soon)
- Thông tin sản phẩm
| Model | NVR7832 (Coming soon) |
| Supports (IP Video input) | Network camera / ONVIF Profile S / ONVIF Profile G / DVR / NVR / Video encoder / Navigator |
| Input(IP video input) | 32 CH |
| Resolution( IP video input ) | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF |
| Maximum Frame Rate ( IP video input ) | 960 FPS |
| Output (Video output) | HDMI 2.0 (4K 60P) / VGA 1080P |
| Spot monitor (Video Display) | HDMI & VGA sync output |
| Split Screen | 1 / 4 / 8 / 9 / 12 / 13 / 16 / 25 / 32 split division, sequence mode, freeze, alarm display |
| Digital zoom | Up to 64× on live and playback |
| Video Compression | H.264 / H.265 |
| Maximum Network Throughput | 300Mbps (RAID 160Mbps) |
| Recording Resolution | CIF ~ 4K |
| Frame Rate | Single channel up to 1080P 120 FPS |
| Application/ Recording Mode | Manual, schedule (continue, event, none) |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / network camera event / DI |
| Metadata options | POS RFID AND PIN CONTROLLER BARCODE SCANNER GPS LPR (Denial, Allowed, Vistor) AI Camera IVS Camera |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 32CH synchronous playback |
| Playback Resolution | CIF ~ 4K |
| Max. frame rate (Playback) | Up to 1080P 120FPS |
| Playback Speed | Fast rewind 2× ~ 64× / Fast forward 2× ~ 64× / Slow motion 1/2 ~ 1/16 |
| Internal HDD / Swap Drive Bay | 8 × 3.5" HDD (Up to 16TB supported) |
| eSATA | eSATA connector × 2 (Up to 32TB external storage supported, each 16TB) |
| RAID | Software RAID 1/5/6 supported |
| USB Flash Disk(Backup) | Up to 128 GB supported |
| Network Backup | Via HTTP / FTP / Network Places |
| Audio Input | 32 CH (Network camera), G.711 u-law 8K & AAC |
| Audio Output | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) |
| Line Input | RCA × 1 |
| Network Camera Two Way Audio / IP camera 2-way audio | Yes |
| Network ports | RJ-45 Gigabit Ethernet × 2 (Ethernet failure redundancy or sharing supported) |
| Protocols | ARP / TCP/IP / UDP / HTTP / HTTPS / SMTP / SNMP / FTP / DDNS / PPPoE / NTP / RTP / RTSP / DHCP/ ONVIF Profile S / ONVIF Profile G |
| Web (Network) | Direct internet browser access / Multiple users access |
| Mobile Application | iOS / Android supported |
| P2P(Network) | APP scan QR Code / UID connection |
| RTSP service | RTP UDP/ RTSP TCP supported |
| IPScan / WS-Discovery( Network ) | WS-Discovery and IP Scan, automatically quick IP address setup for network cameras |
| Network | Live / playback / backup / menu configuration / event log |
| VMS | Navigator |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple NVRs file download and multi-channel playback |
| Digital watermark (Video tamper resistance) | support digital watermark feature to ensure the backup footage is not got forged and modified |
| Ports | DI × 16 and DO × 4 (With programmable condition) |
| Reports( System ) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication ( System ) | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| HDD Inspection(System) | S.M.A.R.T monitoring / File system defragmentation/ IO read write error |
| Recording day | Automatic recording day calculator |
| Time | Daylight saving / NTP Client / NTP Server / External USB GPS time sync / Keyboard |
| PTZ protocol | HTTP / ONVIF |
| Keyboard Keypad | Support PIH-931D keyboard input (Connector box required) |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| RS-485 | One set for keyboard controller |
| Remote Controller | Remote controller addressable up to 255 NVRs (Optional) |
| Mouse | Mouse click, drag and scroll |
| Microphone | USB Mic (Optional) |
| Wi-Fi Dongle | WiFi and 4G external USB dongle supported (Certified brand only) |
| USB GPS Receiver | Support |
| CPU | ARM Cortex A55 8 Core |
| OS | Embedded Linux Kernel 5.10 |
| WDT | Hardware watchdog timer |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| Power Supply | AC 100 ~ 240V 60 ~ 50HZ 6.3A |
| Operating temperature | 0°C ~ 45°C |
| Operating humidity | 5% ~ 80% |
| Dimension (W×L×H) | 438 × 451 × 87 mm |
| Weight | ≈7.5 KG (Without hard drive) |
