Chi tiết

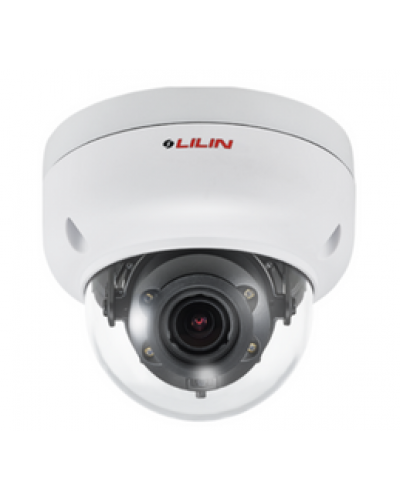

    CAMERA LILIN H.265 SERIES Z7R6482X3-P

  • Mô tả:
    • Độ phân giải CMOS 8 megapixel
    • Chuẩn nén video hiệu suất cao 8MP H.265 / HEVC và H.264 / AVC
    • Truyền phát đồng thời các luồng được mã hóa H.265 và H.264
    • Tự động lấy nét với ống kính zoom / lấy nét
    • Khoảng cách IR tối đa 30m
    • Giảm nhiễu 3D (MCTF)
    • Chức năng 2D WDR
    • Chức năng HDR lên tới 140dB
    • Hỗ trợ PTZ kỹ thuật số
    • ONVIF S, T, G  được hỗ trợ
    • Chống mưa và bụi IP68
    • Chỉ số bảo vệ tác động bên ngoài IK10



  • Lượt xem : 280
  • Thông tin sản phẩm
Model Z7R6482X3-P
Min. illumination/Low Light Mode (Colour) Color : 0.04 Lux at F1.6 ; B/W : 0.008 Lux at F1.6 ; 0 Lux with IR LED ON
Focal Length 2.8~12mm (zoom / focus motorized)
Iris F 1.6(W) - F 3.3(T)
Iris Control P-iris
Angle of View 108.0° (W) - 31.5° (T) (H) 56.3° (W) - 18.0° (T) (V) 130.8° (W) - 36.7° (T) (D)
Peak wavelength 850nm
Beam Spread 60° , 90°
Max IR distance 30M
Pick Up Element 1/2.8" CMOS image sensor
Effective pixels 3864 (H) × 2176 (V) = 8,408,064 (Pixels)
Light sensor Yes
CE Yes, EMI Class A
FCC Yes, EMI Class A
IP Rating IP68
Vandal Resistant Rating / IK Rating IK10
CPU Intel® Core™ i7 or higher grade
OS Windows 7 or above
RAM 8GB or above, Dedicated Graphics Card
Web browser Microsoft® Internet Explorer® 9 or above
Microsoft® Edge (IE mode)
Audio Input / Output Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block
Audio Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required
Alarm Input / output Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block
Live Video Output CVBS 1.0Vp-p, 75 ohm, Connector
Video Compression H.265/HEVC main profile, H.264 main and high profile , Motion JPEG
Video streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth
Number of streams 4
Video bitrate 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate
Encryption Base64 HTTP encryption, HTTPS encryption
Authentication Digest HTTP authentication, RTSP authentication, DDNS via HTTPS
Address Filter IP address filter, MAC address filter
Access Multiple user access levels with password protection
User accounts 10 user accounts available
Multi IP address Yes
Resolution 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240)
Maximum Frame Rate Normal mode:
60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160
HDR mode:
60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160
Scanning System Progressive Scan
Infrared Cut Filter Auto / Day (Color) / Night (Mono) / Schedule
White Balance Auto / Manual one push
Electrical Shutter 1/30(1/25)s – 1/20000s
Sense Up Off / x2 / x4 / x8
Sense Up+ Yes
Auto Gain Control 60 dB Variable Gain
S / N Ratio More than 50dB (AGC off)
3D Noise Reduction Off / 1 – 32 Selectable
High Dynamic Range(HDR) Up to 140dB (by HDR mode, 2 shutter line interleave)
Privacy Masking Off / On (4 zones)
Image Effects Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction
Auto Focus One Push
EV (Exposure Value) Adjustable
Mobile Application Integrated to LILIN mobile app (LILIN Home) iPhone, iPad, Android support
Video Management ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 3.0 support, Third party VMS through LILIN HTTP API
SD Card (recording) Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included)
SD Card Compatible List Micron -
32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10)
Transcend -
4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10
SanDisk -
8GB SDHC, 32GB, 64GB, 128GB SDHC C10
Kingston -
64GB SDXC C10
Maintenance Firmware update via HTTP and IP Scan; Firmware available at website
IVS Basic 1.0 Motion / Tamper
Alarm event triggers Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata
Alarm event actions FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input
Languages English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese
Network Interface/Ethernet 10/100/1000 Mbps Base-T, RJ-45
ePTZ & Digital Zoom Yes
OSD Position configurable text overlay for date, time, camera ID, event status
CPU.Memory Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memory
Protocols IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G
Network OS Embedded Linux 4.14
Max number of online users 10 simultaneous users
Video Display LILIN Universal ActiveX & HTML5
Log Event & operation log & IVS event log
Schedule Support holiday list
Network Storage NAS (Support SAMBA/CIFS)
Starting Temperature -10°C – +50°C (14°F – 122°F)
Operating temperature -40°C – +50°C (-40°F – 122°F)
Storage temperature -25°C – +60°C (-13°F – 140°F)
Operating humidity 0% – 90% RH
Power Supply DC12V ±10% (Terminal connector) / PoE (IEEE 802.3af compliant)
Power Consumption DC12V, 9.5W / PoE, 10.6W
Dimensions Ø120 × 106 mm
Weight 720g
Casing Material Aluminum alloy
